NEW PRODUCT: DMR (Direct Multi Recorder)
Record your daily drive. Analyze your driving. HKS' New "Circuit Recorder" makes its debut.
DMR also functions as a drive recorder that can keep visual records of incidents and accidents accurately.

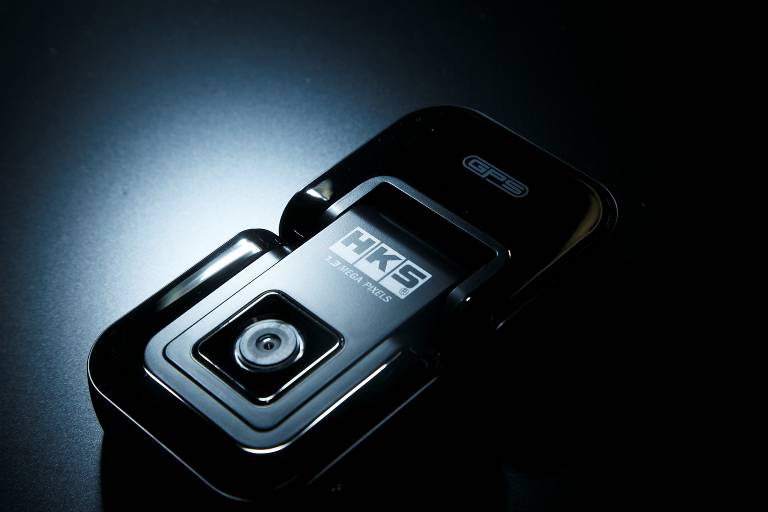

Features
Main
unit contains a camera, GPS and G sensors to enable recording of video,
audio, position, time and impact with improved recording performance.
“DMR” is the recorder that facilitates comprehensive yet easy recording
SIMPLE INSTALLATION
Position
the DMR unit at the top of the windscreen, and just plug into the Cigar
Lighter Socket. (constant power supply also included)
GPS UNIT & G-SENSOR EQUIPPED
Location and interval speed can be viewed on Google maps using the GPS location information.
G sensor can detect and record the speed (G) so the DMR can show the XYZ amplitude. Also, there is a permanent power supply unit included which has auto cutt out to prevent the battery from discharging too much.

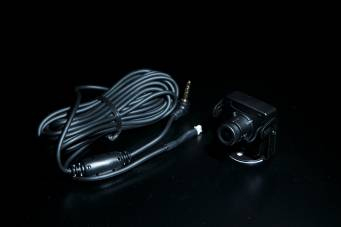

SECOND CAMERA as STANDARD EQUIPMENT
HKS’
DMR is equipped with the 2nd camera as a standard. The camera can point
towards the driver’s foot or meters to record the driver during
circuit. Using the special viewer software, it is possible to analyze
your driving more precisely.
DMR's “HIPER ENGINE” ON CPU
The
latest high speed CPU (Hiper DMR Engine) allows seamless recording
straight to SD memory card without delay even though most drive
recorders will have short gaps every few minutes in recording when it
saves the file to SD memory card.
DMR
uses the latest systems to directly record to the SD memory card
meaning that those precious moments aren’t lost. It also does not retain
any data on the main unit. This is a unique feature for the HKS DMR.

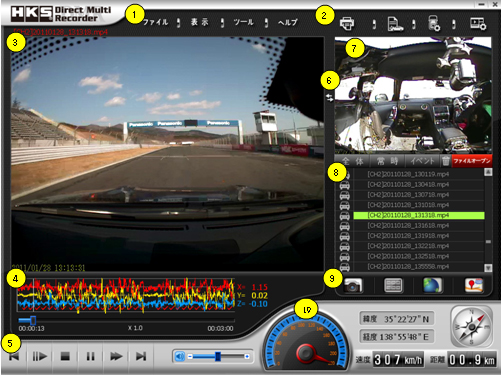

Viewer Software
1. Menu
Menu buttons “File” “View” “Tools” “Help”
2. Shortcut Buttons
Shortcut for printing, event report, DMR settings, and viewer software setup.
3. Main Screen
4. G Sensor Graph
Red: Front/Back G, Yellow: Left/Right G, Blue: Vertical G
5. VCR Control
Adjust Playback controls such as volume replay speed etc.
6. Swtich Screen
Switch between main and sub screens
7. Sub Screen
Display camera image, Google maps or Google Earth Images
8. File List
9. Shortcut Icons
Frame Capture, 16 frame capture, Google maps and Google Earth
10. GPS Data
Speed and distance logged from GPS data.
SPECIFICATION
| Size |
|
|
H: 107mm / W: 60mm / T: 19mm |
|
|
|
Recording Resolution |
MEGA Mode |
IN：1280×960 OUT：640×480 |
|
|
| Weight |
|
|
93g |
|
|
|
|
|
|
|
|
VGA Mode |
IN：640×480 OUT：640×480 |
|
|
| Voltage |
|
|
12V～24V |
|
|
|
|
|
|
Recording Speed |
Main Camera |
|
MEGA |
|
|
15 frame（1280×960） |
|
| Operation Temperature |
-10℃～+60℃ |
|
|
|
|
|
|
|
|
VGA |
|
|
30 frame（640×480） |
|
| |
|
|
|
2nd Camera (2ch) |
MEGA |
|
|
8 frame（1280×960） |
|
| Main Camera |
|
|
1.3M Pixel CMOS Digital Sensor |
|
|
|
|
|
|
|
|
|
|
|
VGA |
|
|
15 frame（640×480） |
|
| 2nd Camera |
|
|
0.27M Pixel / Color CCD（Monochrone in dark) |
|
|
|
Recorded Data Format |
H.264（MPEG-4 AVC） |
|
|
|
|
|
|
| G Sensor |
|
|
XYZ 3D Sensor ( for possible impact, heavy braking, rapid acceleration) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| GPS |
|
|
GPS data for longitude, latitude and time |
|
|
|
Recording Time |
Continuous Save Mode. Constantly records in 3 minute segments |
| Storage Media |
SDHC2GB～16GB （8GB allows for 16hours 1ch recording） |
|
|
|
|
|
|
Event Mode. Records 15 seconds before and after an event (total 30 seconds) |
| |
|
|
|
|
|
|
|
|
|
|
|
Other |
|
|
Internal Microphone, Internal Buzzer, LED |

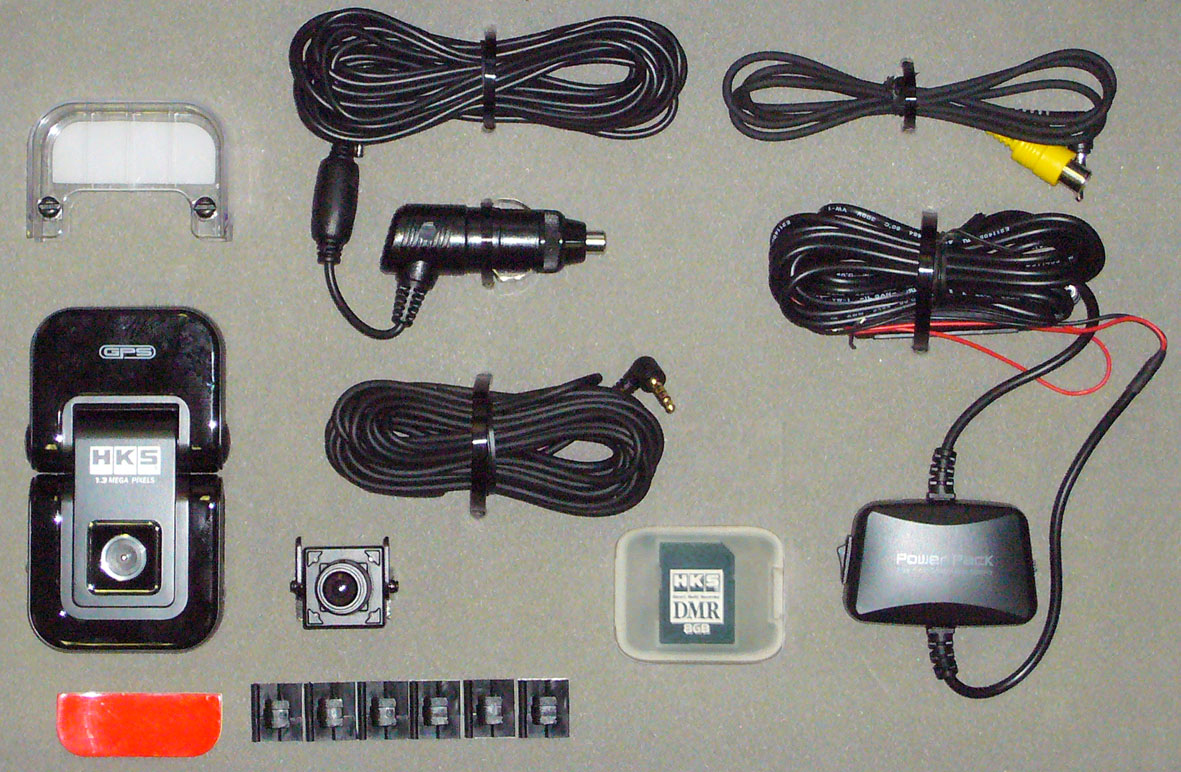

Package Contents
DMR
Main Unit / Cigar Lighter Socket Power Cable (4m) / Hard Wire Power
Unit (3m) / SD Memory Card (8GB) / Video output cable (4m) / Guide
Sticker / Fitting Bracket / 2nd Camera / 2nd Camera Power & AV cable
/ 2nd Camera Holder / Fitting accessories (screws clips tape) / Viewing
software (Windows XP / Vista / 7 Compatible)
